ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

آقای ژو ارزش اعتماد است، او یک تیم خوب دارد، آنها خدمات خوب و کابل با کیفیت را به ما ارائه می دهند.

—— هارون

آقای زو ما را با قیمت خوب به ما می دهد حفاری آب حفاری. متشکرم.

—— جولین

چت IM آنلاین در حال حاضر

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

تصویر بزرگ :  ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

جزئیات محصول:
محل منبع: چین
نام تجاری: JINZHOU SHITAN
گواهی: ISO/CE/COC
شماره مدل: ST-300
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: قابل مذاکره
جزئیات بسته بندی: بسته صادرات استاندارد
زمان تحویل: 7-10 روز
شرایط پرداخت: T/T، وسترن یونیون
قابلیت ارائه: 2000 مجموعه در سال
توضیحات محصول جزئیات
نام محصول: تجهیزات حفاری چاه عمیق شماره مدل: ST 200
نوع ماشین: دکل حفاری Water Borewell گواهی: ISO/CE/COC
قطر سوراخ: 100-350 میلی متر عمق حفاری: 200 متر
وضعیت: جدید میله حفاری: 76/89 میلی متر
گارانتی: 12 ماه گشتاور چرخش: 7500nm ، 983 نانومتر ، 4200n.m ، 3400mm
خدمات پس از فروش: پشتیبانی ویدیویی رنگ: زرد ، قرمز و آبی
برجسته کردن:

ST 200 pneumatic water well drilling rig,large borehole diameter drilling rig,10 inch water well rig

,

large borehole diameter drilling rig

,

10 inch water well rig

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch
ST 200 Pneumatic Drilling Rig for Rocky Layer Blasting Borehole. Professional-grade borehole drilling equipment designed for deep underground operations in rocky layers, with capability to drill up to 200 meters.
Key Features
  • Designed for deep well drilling up to 200 meters
  • Pneumatic drive system for powerful performance
  • Suitable for hydrogeological exploration and water well drilling
  • Excellent adaptability for complex geological conditions
  • ISO certified with 12-month warranty
Product Specifications
Attribute Value
Model Number Crawler-mounted drilling rig
Machine Type Drilling Equipment
Certification ISO
Hole Diameter Customized (90-300mm)
Drilling Depths 200 meters
Condition New
Weight 8.9 T
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m
Air Consumption 16-30 M3/min, 20-100m3/min
Color Options Yellow, Red and Blue
Technical Details
  • Power: Diesel
  • Dimensions: 6400MM × 2250MM × 2700MM
  • Weight: 5800KG
  • Rotary Speed: 0-90rpm
  • Travelling Speed: 0-2.5km/h
  • Drilling Rods: 76×2m + 76×3m
Equipment Components
  • Pneumatic System: Provides power to drive the rotation and impact of the drill bit
  • Drill Rod System: Multiple sections of drill rods for gradual penetration
  • Drill Bit: Various types available based on geological conditions
  • Control System: Adjusts drilling parameters like rotation speed and impact force
  • Debris Removal System: Uses compressed air or mud to keep borehole clean
Safety Precautions
  • Operators must undergo professional training
  • Wear safety helmets, gloves, and other protective equipment
  • Inspect surrounding environment before operation
Product Images
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 0

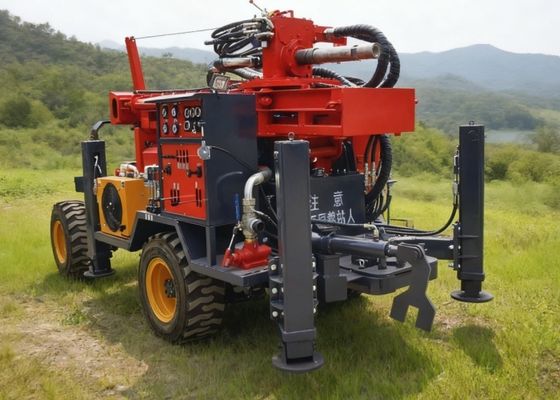

Front View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 1

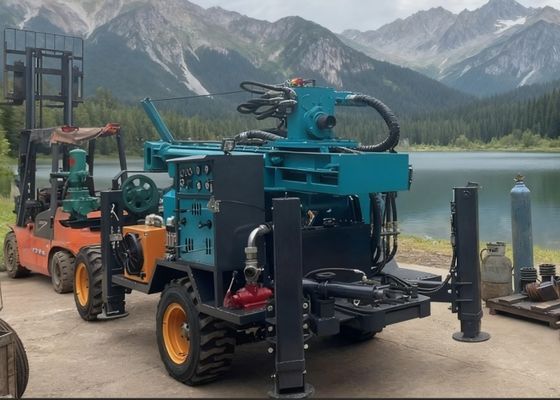

Side View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 2
Operational View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 3
Drilling Mechanism
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 4
Working Environment
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 5
Control Panel
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 6
Drill Bit Close-up
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 7
Full Operational Setup
